3.1”inch IPS V4 LCD Screen Replacement Kits with OSD Menu Function for Nintendo 2025 GBA V4 LCD Screen 15 Levels High Brightness

3.1”inch IPS V4 LCD Screen Replacement Kits with OSD Menu Function for Nintend 2024 GBA V4 LCD Screen 15 Levels High Brightness



Note: With the Laser Carving Colourful logo in front of the screen, if you need more real pictures, pls contact us.



(Only the stickers of these two types are different, others all are the same)







3. Need not welding, support 15 levels touch brightness adjustment. And if you welding it, it can support the control menu function, experience more features.





About point-to-point:



– The IPS screen can not really have a physical  point-to-point , but our this IPS 4.0 screen can support a point-to-point display effect. It is simulated point-to-point. If you want a real physical point-to-point, you can buy our another DSI point-to-point highlight screen, it also is Pre Laminated Highlight Screen Kits.

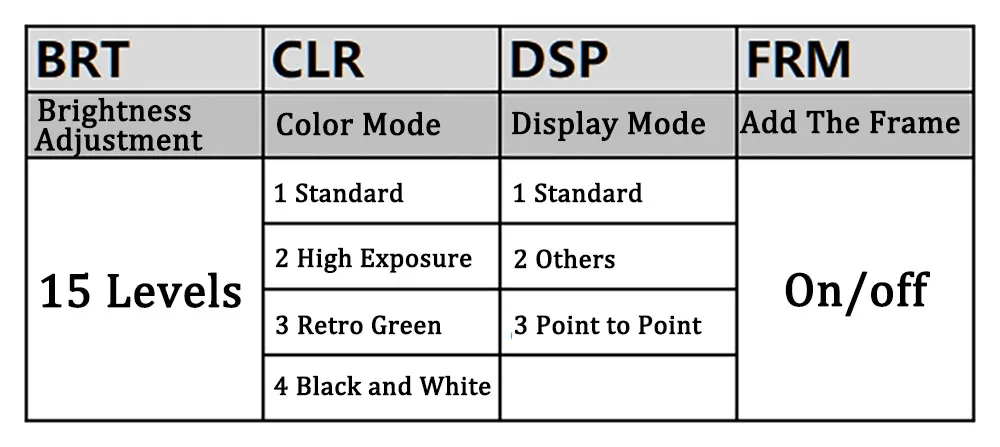

The OSD Control Menu Function:



– After welding the wires, long press SELECT to call out the menu in the power-on state, short press SELECT to switch the tab, and then press L or R to adjust. After adjustment, long press SELECT to turn off, or wait for 10 seconds to turn off automatically.







Additional instructions:



– Regarding the second display mode and FRM supplementary frame under DSP, they are not commonly used options. For example, if a game displays abnormally during use, you can try to solve it by switching between these two functions.



Two Types for you choosing:

1. For IPS Shell (Only Support for the funnyplaying IPS shell in our store)

2. For Original Shell

(Only the sticker is different , others all are the same)





Package included:

1* GBA IPS V4 LCD Kits (with 3.1”inch Glass lens)
